MATE-LD-M5 Single-Girder Overhead Crane – Premium European-Standard Lifting Solution
The MATE-LD-M5 Single-Girder Overhead Crane delivers advanced lifting performance with European-standard technology for industrial applications requiring reliable capacity and operational efficiency. This single-girder bridge crane combines proven engineering with modular design and lightweight construction to provide comprehensive lifting solutions across the 3-20 ton capacity range with M5 duty classification.

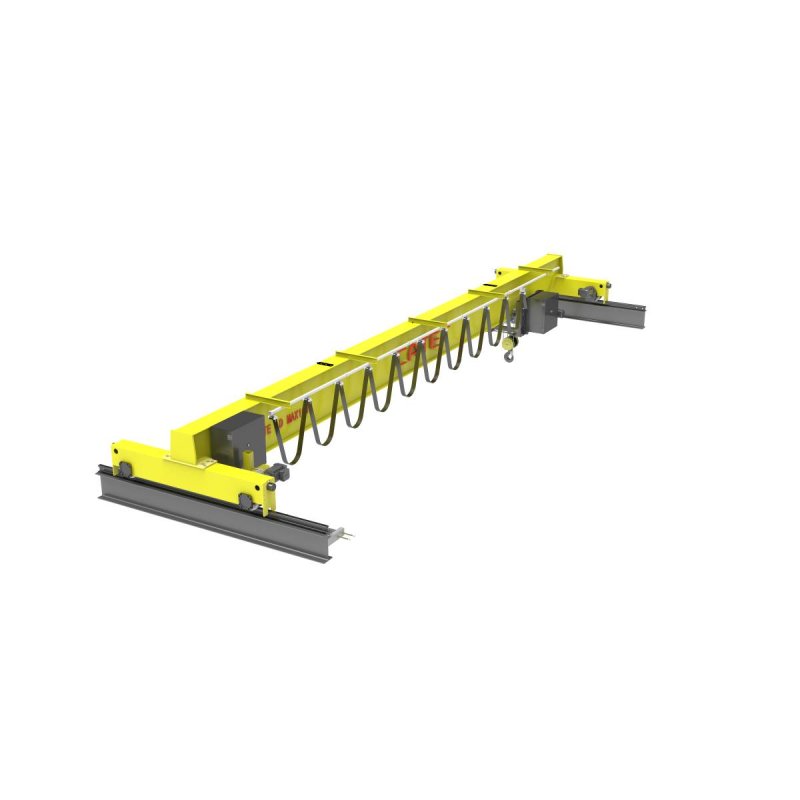

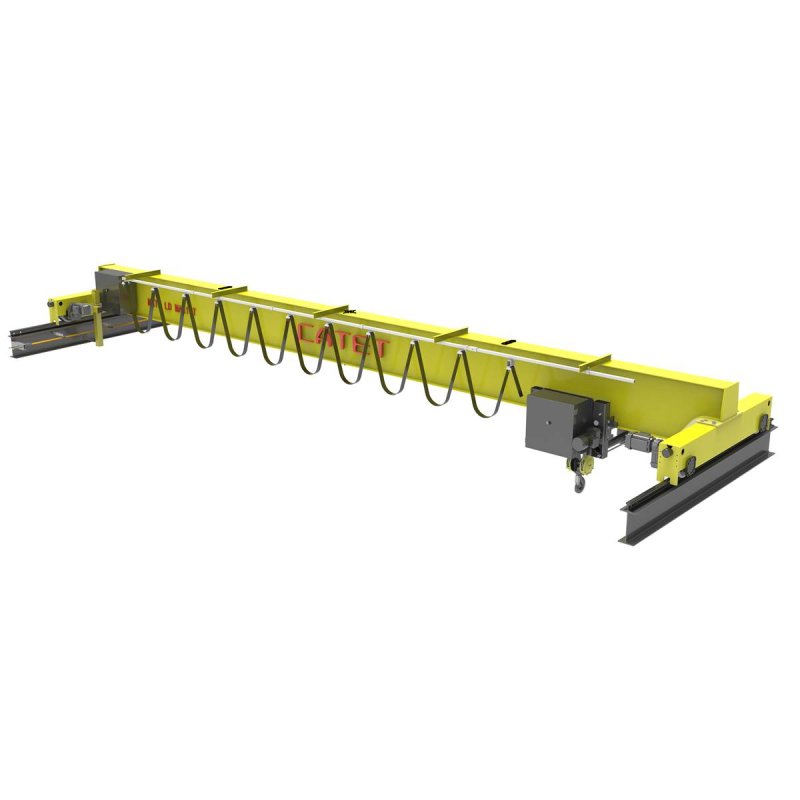

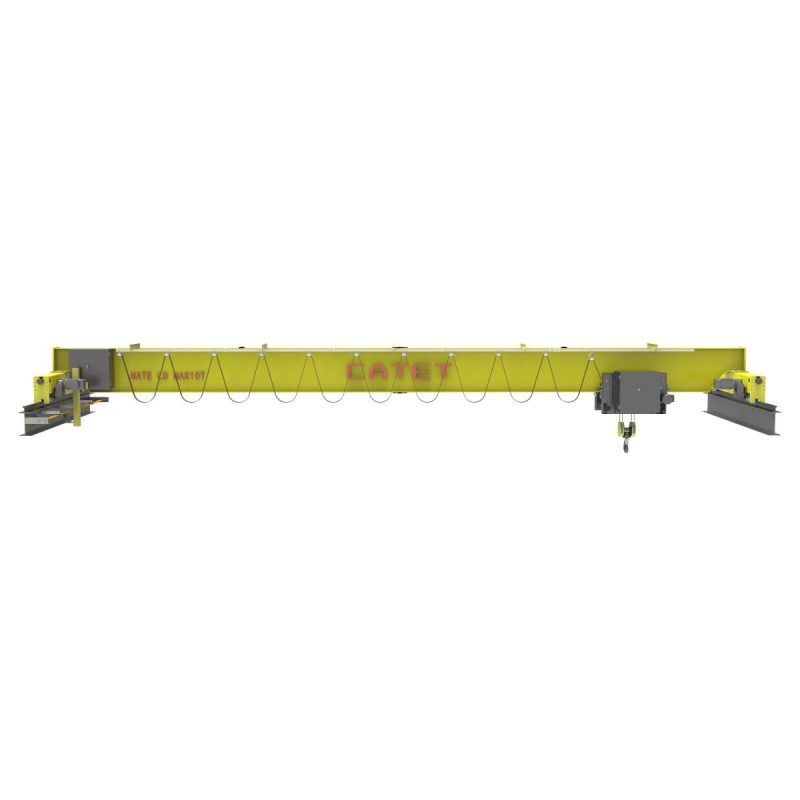

MATE-LD-M5 Single-Girder Overhead Crane
Technical Specifications and Performance Features
The hoisting system provides 3-20 ton lifting capacity with M5 work level configuration for enhanced operational reliability. This MATE-LD-M5 system features robust construction with optimized steel structure, providing optimal lifting efficiency while offering operators the flexibility to handle demanding tasks in industrial environments.
The lightweight design ensures reduced wheel pressure and building load, maintaining strong performance across the capacity range. The system follows strict FEM M5 standards for reliable, efficient lifting.
Mechanical Design Features
The single-girder overhead crane utilizes quality components engineered for industrial operation:
- High-strength Q235B, Q355B, or Q355E steel for main beam
- Box beam with automatic welding and non-destructive testing
- Durable 40Cr or 42CrMo alloy steel wheels with heat treatment
- Three-in-one drive system combining motor, reducer, and brake
- Self-aligning bearings and shock absorbers for stability
- Modular setup for easy upkeep and compact build
- Suitable for -40°C conditions with long-term reliability
The mechanical components are designed to provide reliable performance with lightweight construction across variable load ranges.
Operational Features
The overhead crane system provides:
- Variable frequency AC motors for smooth, energy-efficient operation
- Precise speed control with dual or micro-speed settings
- High efficiency in material movement and load handling
- Consistent performance across span and height ranges
The crane maintains reliable mechanical performance, ensuring smooth lifting operations with enhanced control.
Safety and Protection Systems
Standard safety features include:
- Overload and height limiters for secure operation
- Anti-collision alarms and overspeed safeguards
- Zero-pressure protection and protective covers
- Guardrails and rainproof design for outdoor use
- IP55 protection on control box for environmental resistance
- Emergency stop integration capability
- Thermal protection for electrical components
Installation and System Integration
The crane system offers flexible installation options:
- Multiple mounting orientations available
- Standard integration with existing structures
- Compatible with various industrial setups
- Equipment span up to 40m for broad coverage
Control System Compatibility
The MATE-LD-M5 system accepts:
- Variable Frequency Drive (VFD) for speed adjustments
- Remote controls from Yuding, Apollo, or HBC
- Integration with premium brands like Schneider, Siemens, ABB
- Standard pendant control systems
- Emergency stop and safety circuit connections
Technical Performance Data
Standard Specifications:
- Model: MATE-LD-M5
- Capacity range: 3-20 tons
- Work level: M5
- Equipment span: 5-40m
- Lifting height: 6-30m
- Product certification: ISO, CE
- Design standard: GB3811
Premium Components:
- Motors/reducers: SEW, ABM, Nord, Siemens
- Electrics: Schneider, Siemens, ABB, Honeywell
- Inverters: Schneider, Siemens, ABB, Danfoss, Yaskawa
Quality Manufacturing Standards
The crane follows established manufacturing protocols:
- Precision assembly with automatic welding
- Comprehensive quality control and non-destructive testing
- Steel structure inspection protocols
- Standard product warranty coverage
- Complete technical documentation provided

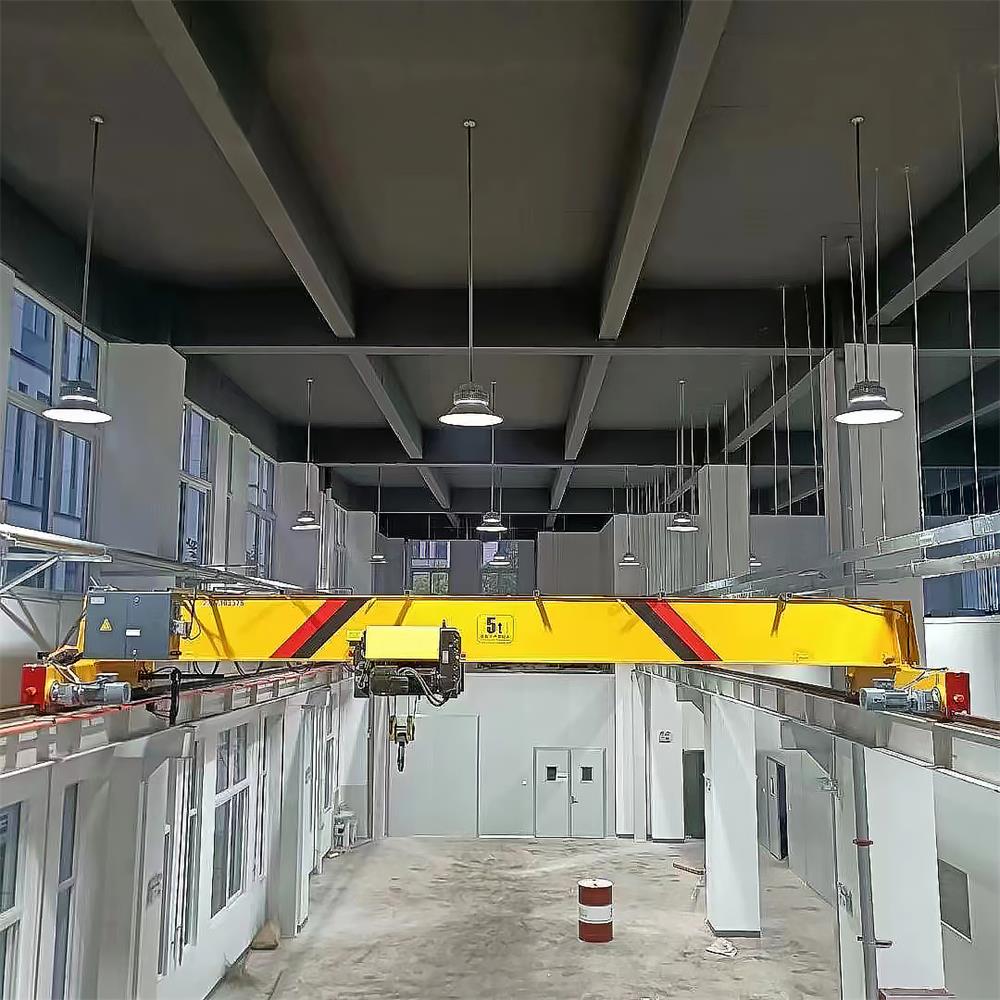

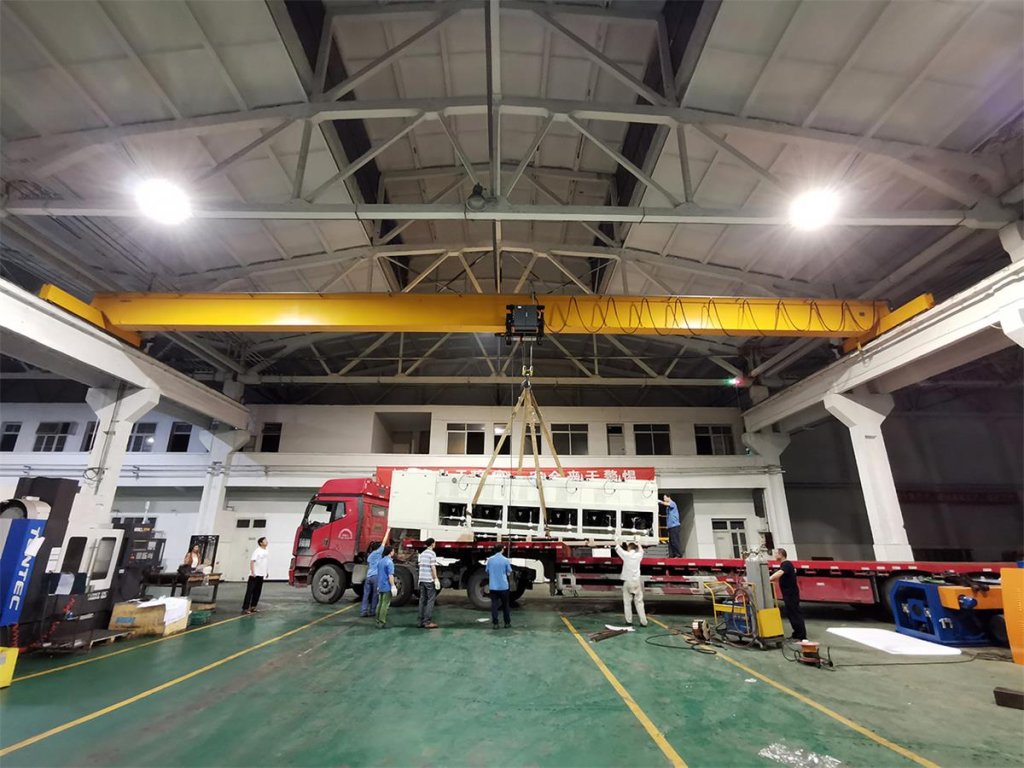

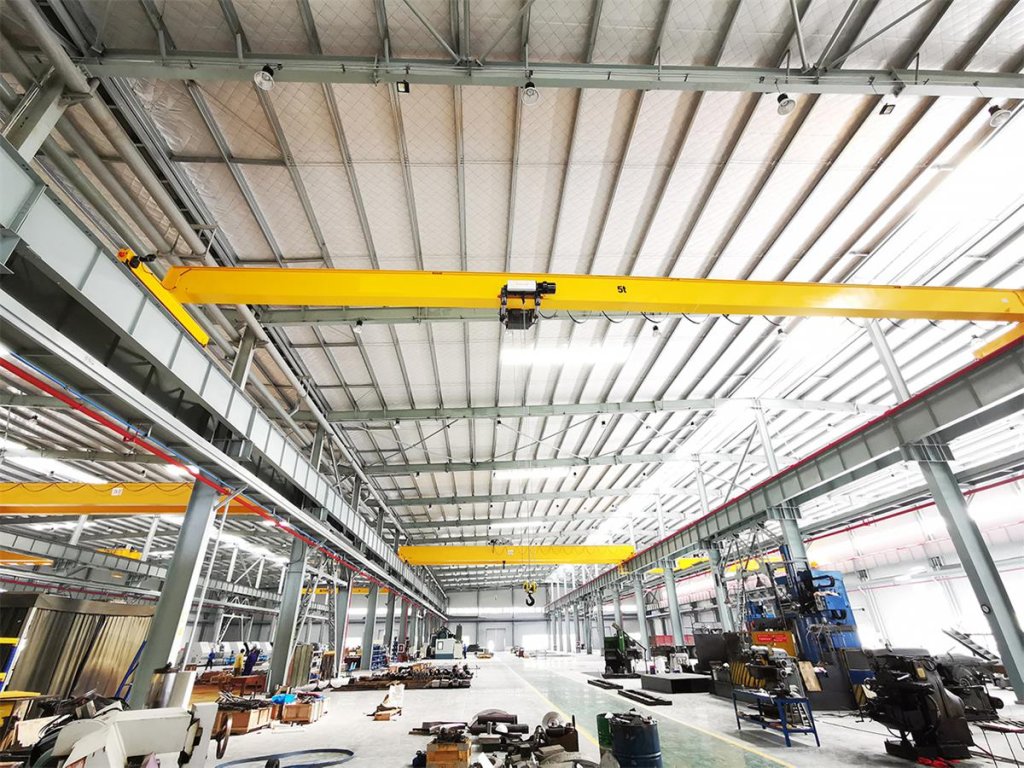

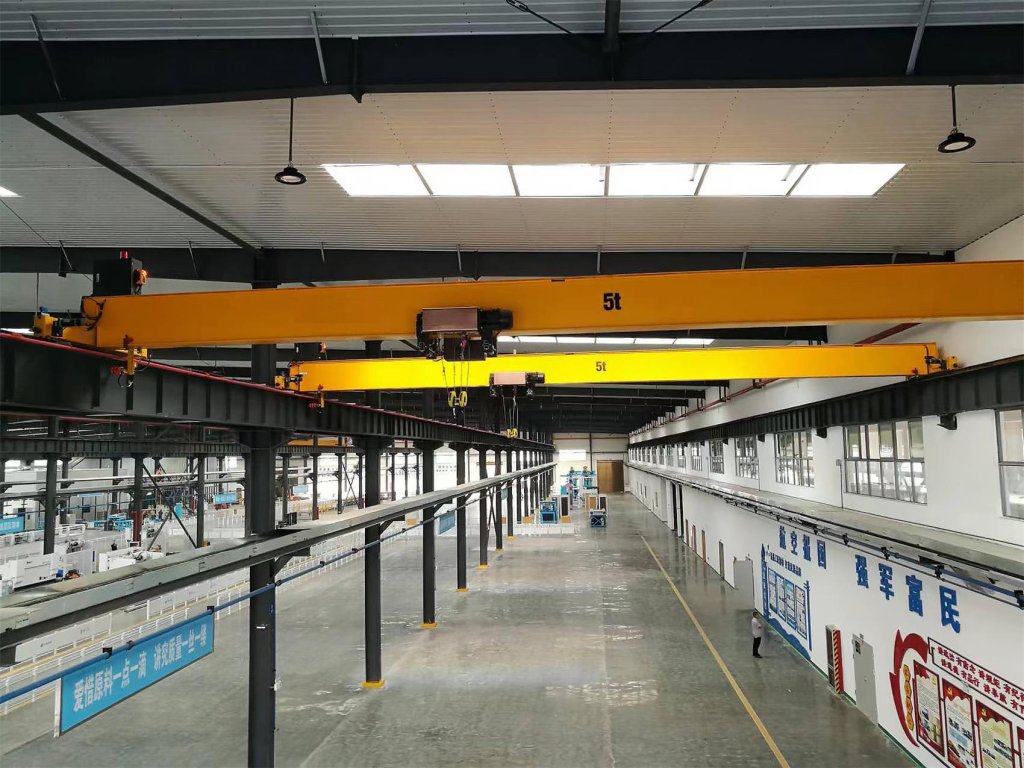

Application Suitability
The single-girder overhead crane serves various industrial applications:
- Manufacturing shops requiring precise material movement
- Automotive lines demanding high efficiency
- Processing plants needing dependable lifts
- Warehouses and logistics hubs for productivity
- Heavy-duty operations across industries
Technical Support and Configuration
For proper system operation:
- Professional installation recommended for M5 applications
- Technical consultation available for integration
- Comprehensive user documentation provided
- Ongoing technical support available
Maintenance Requirements
The crane system requires:
- Regular mechanical maintenance per specifications
- Wheel and drive system inspection schedules
- Periodic safety feature checks and adjustments
- Routine electrical connection inspections
- Standard lubrication maintenance schedules
Contact us for specific MATE-LD-M5 single-girder overhead crane configurations, installation guidance, and system integration support for your industrial lifting applications.
